Intelligent Inverter Testing and Reporting Laboratory

Revolutionizing the ways Inverters are tested on Test Floors

Prolific’s Intelligent Inverter Testing and Reporting Laboratory (IITRL) is an effective systemic response aimed at significantly enhancing productivity, efficiency and integrity of the inverter testing process along with the facility of automatic report generation that adheres to the strict guidelines and reporting formats of various international standards. IITRL is a versatile, PC based system with Inverter Test Pro, an intelligent inverter testing software, at its heart. IITRL consists of fully interfaced test instruments and an integrated test bench for the benefit of inverter manufacturers. IITRL – A comprehensive hardware-software suite catering to inverter, testing instruments and standards while encompassing the entire testing process.

Prolific’s IITRL is devised for testing of inverter, acquiring on-line data from test instruments, and printing reports that are compliant with all national and international standards such as IEC - 61000-6-2, EN 55011, IEEE 519 etc.

IITRL covers following test of Inverter

Testing of Wake Up, Auto Start and Stop with Grid Connectivity

Max. Power Point Tracking Test

Heat Run Test along with Efficiency Test Including VDC, VAC, IAC, KWhr, KW, KVAr, KVArh, Harmonic Content Measurement at 4 Points (25%, 50%, 75%, 100% load)

Grid Synchronization - whether the Inverter connects to grid or not

Verification of Responses on Heat Sink and Cabinet Temp Rise

Automatic Mode Testing (wake up and shutdown) with simulated /actual grid and DC input samples

Protection Test by Direct Method or Simulation (Abnormal Voltage, frequency, DC ground fault, Reverse polarity test, AC/DC overvoltage)

Calibration Test (DC/AC voltage and AC frequency)

Reactive Power Testing of The Inverter

Low Voltage Ride through Test

High Voltage Ride through Test

Zero Voltage Ride through Test

Anti-Islanding Trip Time

IITRL can be used for testing Inverter of all ratings. It is already in use at several locations for testing inverter up to 28MW.

IITRL has following components

Inverter Test Pro - an Intelligent Inverter Testing & Reporting Software

Inverter Test Bench

Transformer

Solar Array Simulator (Rectifier)

Grid Simulator

RLC Load

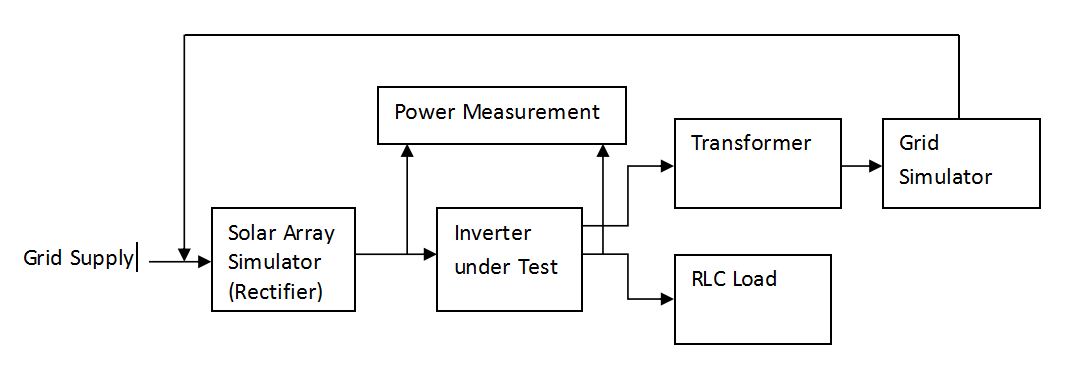

Block Diagram of IITRL
